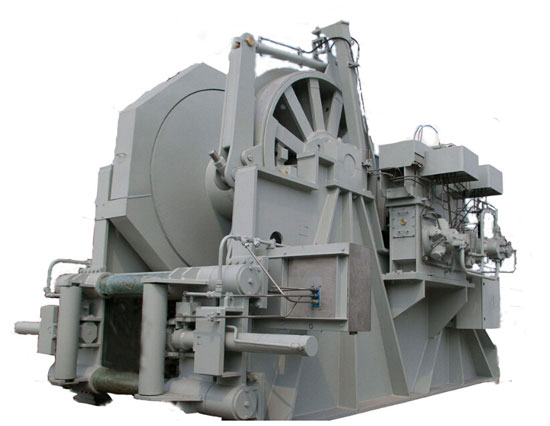

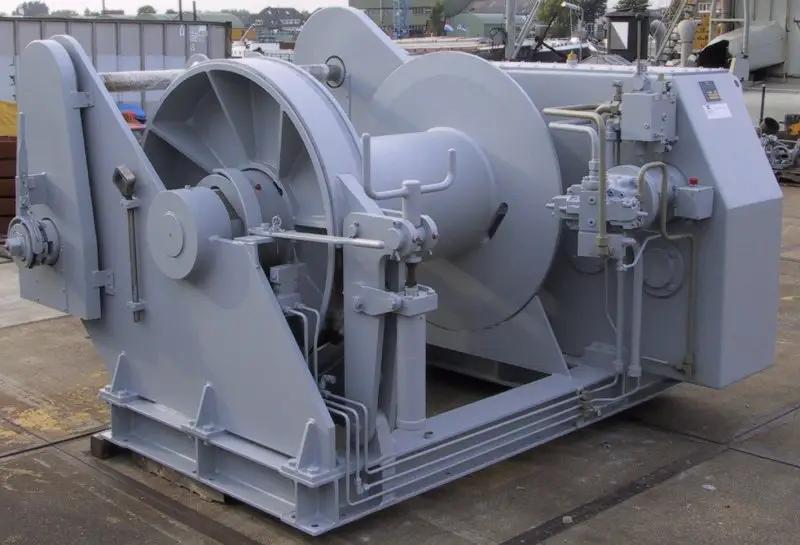

Marine Single and Symmetrical Hydraulic Anchor Windlass / Double Type Mooring Winch Cable Lifter

  • 1
  • 2
  • 3

Brand Name : Zhiyou

Model Number : ZY-EA001

Place of Origin : Shanghai China

MOQ : Negotiable

Price : Negotable

Payment Terms : L/C, T/T

Supply Ability : 5000Set/month

Delivery Time : Within 20 to 30 days, According to customers's order

Packaging Details : Pallet with film packing or according to customer's requirement

Certification : ABS,LR,BV,GL.NK Certificates

Power Source : Electric or Hydraulic

Capacity : 447KN

Category:Deck : Mooring, Anchoring

Application : Marine Deck Equipment

OEM & ODM Service : Available

Third Party Inspection : or other available inspection

Key words : hydraulic mooring winch/capstan winch/windlass

Color : Customized

Design : Customized

MOQ : 1 Piece

Material : Carbon Steel

Packaging : Wooden Case

Port : Shanghai

Size : Customized

Surface Treatment : Polishing

Usage : Marine

Contact Now

Marine Single and Symmetrical Hydraulic Anchor Windlass / Double Type Mooring Winch Cable Lifter


Specifications:

  1. High versatility
  2. Compact structure
  3. Small volume, light weight, convenience in using and transferring
  4. Driving stably
  5. Very light noise
  6. With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.
  7. Adjustable lifting or pulling speed for different usage environment.
  8. This kind of electric wire rope winch can be applied to the lifting or pulling operating in construction water conservancy, forestry, mining and quay places etc.


Quick Details:

  • Place of Origin:Shanghai China
  • Third Party Inspection: or other available inspection
  • Model Number: ZY-EA001
  • Power Source: Electric or Hydraulic
  • Application: Ship
  • Capacity:447KN
  • Category:Deck, Mooring, Anchoring
  • OEM & ODM Service: Available

Marine Single and Symmetrical Hydraulic Anchor Windlass / Double Type Mooring Winch Cable Lifter


Details for Marine Single and Symmetrical Electric Anchor Windlass , Mooring Winch Double Cable Lifter

ZHIYOU MARINE

www.marineoutfittings.com

Model

ZY-EA001-97

ZY-Ew001-97

Drive

Hydraulic or Electric

Type

Single or Double Gypsy

Dia. Chain

Dia. 16-97mm(U2,U3)

Dia. 16-97mm(U2,U3)

Rated Load

10KN-447KN

10KN-447KN

Rated Speed

≥9m/min

≥9m/min

Warping Head

10KN-100KN

10KN-100KN

Holding Load

68KN-3010KN

68KN-3010KN

Clutch

Handle Operated Jaw Type

Brake

Handle Operated Jaw Type

Power Required

4-132KW

3.5-110KW

Control

Local Control and Remote Control in Wheel House

Length and Tension Monitoring System

Optional

Stainless Steel Lined on Drum Brake Band

Chain Stopper

Marine Single and Symmetrical Hydraulic Anchor Windlass / Double Type Mooring Winch Cable LifterMarine Single and Symmetrical Hydraulic Anchor Windlass / Double Type Mooring Winch Cable Lifter


Package & Delivery& Payment terms

ZHIYOU MARINE

www.marineoutfittings.com



Package: Pallet, Plywood case

Delivery time : Within 20 to 30 days, According to customers's order

Shipment : 20'GP, 40'GP,40'HQ, 40'OT or in bulk

Payment : By T/T(30% prepaid as depsit, the balance 70% against copy of B/L )


Our Service

ZHIYOU MARINE

www.marineoutfittings.com


We enthusiastically provide sincere and prompt service to our customers and establish sustainable business relationship with them. Zhiyou marine products are designed and manufactured with one-stop solution providing ability. With 100% factory inspection, we are responsible for any problems subjected to malfunction in warranty period.

1) Punctual delivery time:
• We put your order into our tight production schedule, keep our client informed about production process, ensure your punctual delivery time.
• Shipping notice/ insurance to you as soon as your order is shipped.

2) Services after sales:
• After receiving the goods, We accept your feedback at first time.
• We could provide installation guide and if you need, we could give you global service.
• Our Sales are 24-hours online for your request,

3) Professional sales:
• We value every inquiry sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We have a sales team, with all techinical support from engineer team.

High Quality Assurance

ZHIYOU MARINE

www.marineoutfittings.com


Product Range: We specialized in majority of marine equipments& technique solution.

Product Design: With strong engineer team, for all marine products, we support design, manufacture, install etc, according to your requirements. All products strictly conform to your confirmation.

Product Process: Most of products are finished in our manufacture bases, thus quality and delivery time could keep best and , also avoid some details mistake

Product Inspection: We support factory inspection and inspection/certification.
